Int2D is a simple geometry tool to calculate the intersection of two lines in two-dimensional space. Each line is defined by two points. This is hardly a difficult math problem, but you can eat up a lot of time and make errors working out a set of intersections with pencil and calculator.

The code was based on an article in Graphics Gems, describing the best way to calculate the intersection - with the fewest number of operations. You might find the code in xsect.pas interesting. The solution requires a minimum of 9 additions or subtractions, 10 multiplications and 2 divisions for a total of 21 floating point calculations. Can you beat this?

Paul Bourke has a web page that explains it all.

Dave Eberly has a page (PDF) that explains this and also line-circle intersections.

The usage is supposed to be self-evident. Fill in the blanks and press "Compute". When you are done, press Quit. You get a simple error message if you input parallel lines or try to define a line with two identical points.

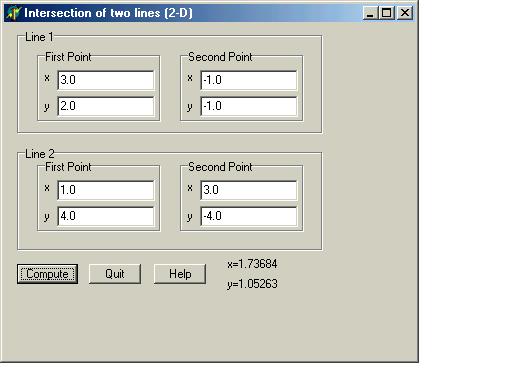

Check out a sample Screen Shot.

{ xsect.pas}
{ The following procedure was inspired by the routine xlines.c
   by  Mukesh Prasad in Graphics Gems II. However, it looks for an
   intersection of the two infinite lines rather than the line segments }
PROCEDURE LinesIntersect(const x1,y1,x2,y2: EXTENDED; { first line}
                         const x3,y3,x4,y4: EXTENDED; { second line }
                         VAR code : INTEGER; { =0 OK; =1 lines parallel}
                         VAR x,y : EXTENDED); { intersection point }

  VAR
    a1, a2, b1, b2, c1, c2 : EXTENDED; { Coefficients of line eqns.}
    denom : EXTENDED;

BEGIN
  a1:= y2-y1;
  b1:= x1-x2;
  c1:= x2*y1 - x1*y2;  { a1*x + b1*y + c1 = 0 is line 1 }

  a2:= y4-y3;
  b2:= x3-x4;
  c2:= x4*y3 - x3*y4;  { a2*x + b2*y + c2 = 0 is line 2 }

  denom:= a1*b2 - a2*b1;
  IF denom = 0 THEN
    BEGIN
      code:=1;
      EXIT
    END;

  x:=(b1*c2 - b2*c1)/denom;
  y:=(a2*c1 - a1*c2)/denom;
  code:=0
END;   (* ------ End Procedure LinesIntersect *)
